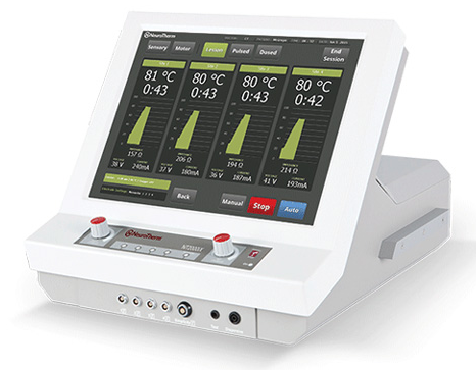

IonicRF™ Generator

• Capable of monopolar, bipolar, pulsed and pulsed dose
radiofrequency therapy
• Able to treat four sites at once with simultaneous or
staggered start options
• Features ProCharge™ Intelligent Power Algorithm
to optimize power distribution between channels,
ensuring efficient temperature ramping and ablation
• Features ProbeID™ Intelligent Probe Setup to
automatically recognize the number of probes
connected and configure settings accordingly
• Able to be mounted on a pole* or set on a flat surface
for optimal procedure room ergonomics
• Includes a 12˝ touch screen that is designed to be
read from across the room
• Compatible with all existing Abbott electrodes
and cannulas1
• Designed to be upgradeable as technology advances

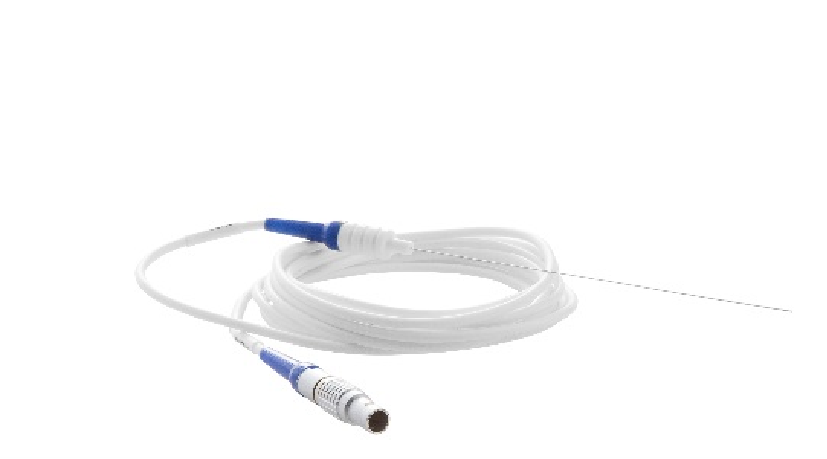

Radio Frequency (RF) Needle Basics

WE MAKE TWO TYPES OF RF NEEDLES:

Select Line (SL)

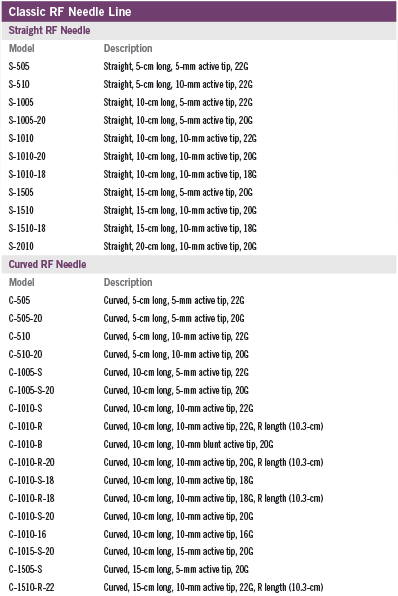

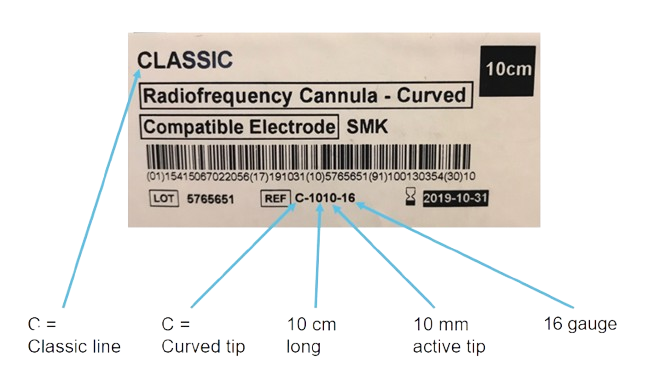

Classic

NEEDLES COME IN FOUR DIFFERENT LENGTHS:

5 cm
10 cm
15 cm
20 cm (rarely used and limited options)

RF NEEDLES HAVE AN “ACTIVE TIP” AND THEY COME IN THREE DIFFERENT LENGTHS:

5 mm
10 mm
15 mm

RF Needle Gauges

NEEDLES COME IN FOUR DIFFERENT GAUGES:

16 (less common and classic only)
18 (pink hub)
20 (yellow hub)
22 (black hub)

EACH NEEDLE HAS EITHER A ROUND OR SQUARE HUB THE COLOR OF THE HUB REPRESENTS THE GAUGE

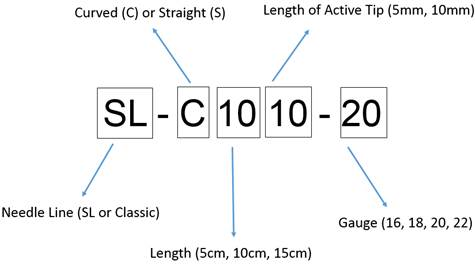

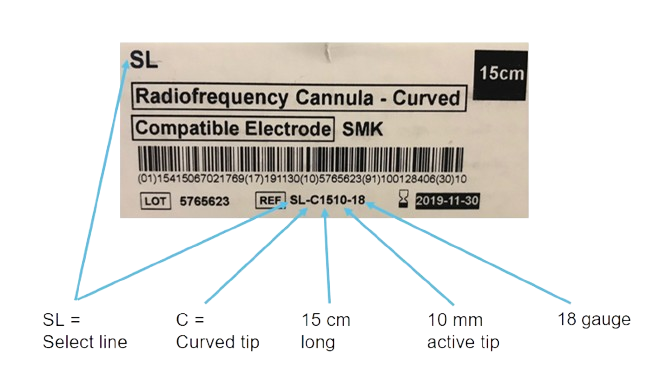

SL Needles

Most popular
White polyester insulation that is spray applied and not shrink-wrapped
Silicon coated to advance through tissue easier (less discomfort to the patient)
You can recognize SL needles because they are white
Curved and straight needle tip
5, 10 and 15 cm needle length offering
5 and 10 mm active tip length offering
18 G (pink hub), 20 G (yellow hub) and 22 G (black hub) size offering
